Example 1: Single-Column Site Response Analysis with Frequency Sweep

Overview

This example demonstrates how to create a 1D site response analysis model using a single column of 3D elements in Femora. Unlike the multi-material layered model in the Quick Start guide, this example focuses on:

  1. Creating a simplified single-material layered soil profile

  2. Using frequency sweep input motion to test a wide frequency range

  3. Comparing numerical results with analytical transfer functions

  4. Running the analysis on a single processor (non-parallel execution)

The example showcases Femora’s ability to perform traditional site response analyses with 3D elements while maintaining comparability with analytical solutions. This serves as an excellent verification case for more complex models.

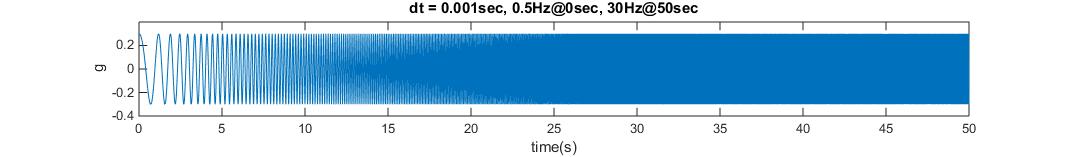

Frequency Sweep Input Motion

Frequency sweep input motion used in this example, transitioning from 0.5Hz to 30Hz over 50 seconds

Model Description

Soil Column:

  • Single 1m × 1m soil column in horizontal dimensions

  • Total depth of 18m

  • Five distinct soil layers with identical material properties (simplified homogeneous case)

    • Dense Ottawa Sand 1: 2.6m thick (bottom)

    • Dense Ottawa Sand 2: 2.4m thick

    • Dense Ottawa Sand 3: 5.0m thick

    • Loose Ottawa Sand: 6.0m thick

    • Dense Montrey Sand: 2.0m thick (top)

Materials:

  • Single elastic material used for all layers:

    • Shear modulus (G): 62.0e6 Pa

    • Unit weight (γ): 15.3 kN/m³

    • Shear wave velocity (Vs): 201.4 m/s (calculated)

    • Poisson’s ratio (ν): 0.3 (assumed)

    • Rayleigh damping: 3% at frequencies 2.76Hz and 13.84Hz

Mesh:

  • Element sizes: 1.0m × 1.0m horizontally

  • Variable vertical discretization based on layer thickness:

    • Layer 1: 1.3m element height

    • Layer 2: 1.2m element height

    • Layer 3: 1.0m element height

    • Layers 4 & 5: 0.5m element height

Loading:

  • Frequency sweep input motion (0.5Hz to 30Hz over 50 seconds)

  • Applied as uniform excitation in X-direction at the base

  • Used to capture the full frequency response of the soil column

Analysis:

  • Sequential execution (single processor)

  • RCM equation numberer for efficiency

  • Band-General system solver (compatible with standard OpenSees)

  • Newmark time integration with γ=0.5

Implementation Details

Let’s walk through the key components of the implementation:

Material Definition

The model uses a single material type with properties representing typical sand. The material properties are derived from fundamental parameters:

G = 62.e6                        # Shear modulus in Pa
gamma = 15.3                     # Unit weight in kN/m³
rho = gamma * 1000 / 9.81        # Density in kg/m³
Vs = (G / rho) ** 0.5            # Shear wave velocity in m/s
nu = 0.3                         # Assumed value for Poisson's ratio
E = 2 * G * (1 + nu)             # Young's modulus in Pa
E = E / 1000.                    # Convert to kPa
rho = rho / 1000.                # Convert to kg/m³

Although the model has a single material type, we create three material objects with identical properties to maintain the naming convention from the Quick Start example:

fm.material.create_material(material_category="nDMaterial", material_type="ElasticIsotropic",
                          user_name="Dense Ottawa",  E=E, nu=nu, rho=rho)
fm.material.create_material(material_category="nDMaterial", material_type="ElasticIsotropic",
                          user_name="Loose Ottawa",  E=E, nu=nu, rho=rho)
fm.material.create_material(material_category="nDMaterial", material_type="ElasticIsotropic",
                          user_name="Dense Montrey", E=E, nu=nu, rho=rho)

Elements and Damping

The elements are created with gravitational body forces in the vertical direction. A uniform Rayleigh damping is applied to all elements:

DensOttawaEle  = fm.element.create_element(element_type="stdBrick", ndof=3,
                                         material="Dense Ottawa",
                                         b1=0.0, b2=0.0, b3=-9.81 * rho)
LooseOttawaEle = fm.element.create_element(element_type="stdBrick", ndof=3,
                                         material="Loose Ottawa",
                                         b1=0.0, b2=0.0, b3=-9.81 * rho)
MontreyEle     = fm.element.create_element(element_type="stdBrick", ndof=3,
                                         material="Dense Montrey",
                                         b1=0.0, b2=0.0, b3=-9.81 * rho)

# Create one damping for all the meshParts
uniformDamp = fm.damping.frequencyRayleigh(f1=2.76, f2=13.84, dampingFactor=0.03)
region = fm.region.elementRegion(damping=uniformDamp)

The frequencies for Rayleigh damping (f1=2.76Hz, f2=13.84Hz) were specifically selected based on the first and third natural frequencies of the soil column. This approach ensures relatively constant damping across the frequency range of interest, which is important for accurate transfer function calculation. By targeting these specific modal frequencies, the model maintains consistent energy dissipation characteristics for the predominant modes of vibration.

Layer Definition and Mesh Generation

The soil column is modeled as a stack of five layers with varying thicknesses. Each layer has a specific discretization in the vertical direction:

# Define mesh dimensions
Xmin = 0.0 ;Xmax = 1.0
Ymin = 0.0 ;Ymax = 1.0
Zmin = -18.;Zmax = 0.0
dx   = 1.0; dy   = 1.0

# Layer information from bottom to top
layers = [
    {"name": "DensOttawa1", "element": DensOttawaEle,  "thickness": 2.6, "dz": 1.3},
    {"name": "DensOttawa2", "element": DensOttawaEle,  "thickness": 2.4, "dz": 1.2},
    {"name": "DensOttawa3", "element": DensOttawaEle,  "thickness": 5.0, "dz": 1.0},
    {"name": "LooseOttawa", "element": LooseOttawaEle, "thickness": 6.0, "dz": 0.5},
    {"name": "Montrey",     "element": MontreyEle,     "thickness": 2.0, "dz": 0.5},
]

Note how we systematically create each layer by updating the Z coordinate as we move upward through the profile:

Nx = int((Xmax - Xmin)/dx)
Ny = int((Ymax - Ymin)/dy)

for layer in layers:
    fm.meshPart.create_mesh_part(
        category="Volume mesh",
        mesh_part_type="Uniform Rectangular Grid",
        user_name=layer["name"],
        element=layer["element"],
        region=region,
        **{
            'X Min': Xmin, 'X Max': Xmax,
            'Y Min': Ymin, 'Y Max': Ymax,
            'Z Min': Zmin, 'Z Max': Zmin + layer["thickness"],
            'Nx Cells': Nx, 'Ny Cells': Ny, 'Nz Cells': int(layer["thickness"] / layer["dz"])
        }
    )
    Zmin += layer["thickness"]

Assembly Configuration for Single-Processor Analysis

A key difference from the Quick Start guide is the assembly configuration. Here, we specify num_partitions=0 for all sections to ensure the model runs on a single processor:

# Create assembly sections for single-processor analysis
fm.assembler.create_section(meshparts=["DensOttawa1", "DensOttawa2", "DensOttawa3"], num_partitions=0)
fm.assembler.create_section(["LooseOttawa"], num_partitions=0)
fm.assembler.create_section(["Montrey"], num_partitions=0)

# Assemble the mesh parts
fm.assembler.Assemble()

Frequency Sweep Input Motion

Instead of using an earthquake record, we use a frequency sweep signal that transitions from 0.5Hz to 30Hz over 50 seconds. This provides a comprehensive evaluation of the site response across a wide frequency range:

# Create a TimeSeries for the uniform excitation
timeseries = fm.timeSeries.create_time_series(series_type="path",
                                            filePath="FrequencySweep.acc",
                                            fileTime="FrequencySweep.time",
                                            factor= 9.81)

# Create a pattern for the uniform excitation
kobe = fm.pattern.create_pattern(pattern_type="uniformexcitation",dof=1, time_series=timeseries)

Boundary Conditions

Laminar boundary conditions are essential for site response analysis to ensure one-dimensional wave propagation:

# Boundary conditions
fm.constraint.mp.create_laminar_boundary(bounds=(-17.9,0),dofs=[1,2,3], direction=3)
fm.constraint.sp.fixMacroZmin(dofs=[1,1,1],tol=1e-3)

The laminar boundaries constrain all nodes at the same elevation to move together horizontally, simulating the behavior of a shear box or infinite horizontal soil layer. The fixed base provides the location where input motion is applied.

Analysis Configuration

The analysis configuration uses a Newmark integrator with modified parameters for improved numerical stability, and specifies solvers compatible with standard (non-parallel) OpenSees:

# Gravity analysis
newmark_gamma = 0.6
newnark_beta = (newmark_gamma + 0.5)**2 / 4
dampNewmark = fm.analysis.integrator.newmark(gamma=newmark_gamma, beta=newnark_beta)
gravity = fm.analysis.create_default_transient_analysis(username="gravity",
                                                      dt=1.0, num_steps=30,
                                                      options={"integrator": dampNewmark})

# Dynamic analysis
system = fm.analysis.system.bandGeneral()
numberer = fm.analysis.numberer.rcm()
dynamic = fm.analysis.create_default_transient_analysis(username="dynamic",
                                                      final_time=40.0, dt=0.001,
                                                      options={"system": system,
                                                               "numberer": numberer})

A key modification is using the bandGeneral system solver and rcm numberer instead of parallel solvers. This ensures compatibility with standard OpenSees.

Process Flow and Recording

The process flow includes gravity initialization, setting up the frequency sweep excitation, recording results, and exporting the tcl file:

mkdir = fm.actions.tcl("file mkdir Results")
recorder = fm.recorder.create_recorder("vtkhdf", file_base_name="Results/result.vtkhdf",
                                      resp_types=["accel", "disp"], delta_t=0.001)
reset = fm.actions.seTime(pseudo_time=0.0)

# Add steps to the process
fm.process.add_step(gravity,  description="Gravity Analysis Step")
fm.process.add_step(kobe,     description="Uniform Excitation (Frequency Sweep)")
fm.process.add_step(mkdir,    description="Create Results Directory")
fm.process.add_step(recorder, description="Recorder of the whole model")
fm.process.add_step(reset,    description="Reset pseudo time")
fm.process.add_step(dynamic,  description="Dynamic Analysis Step")

# Export the model to a TCL file
fm.export_to_tcl("mesh.tcl")

Results and Analysis

After running this model, we can analyze the results by comparing the generated transfer functions with analytical solutions. The post-processing script (plot.py) performs this analysis.

Response Time Histories

The following figure shows the comparison between input motion at the base and output motion at the surface:

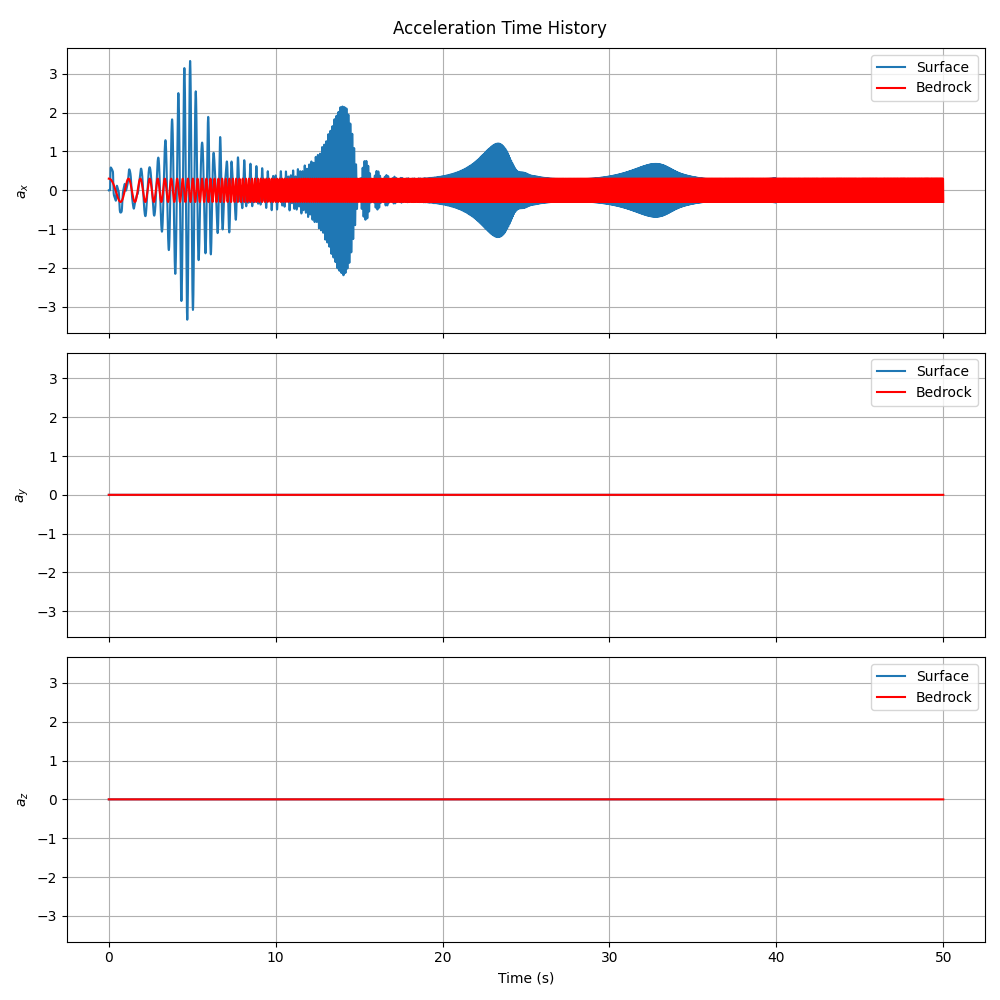

Comparison of acceleration time histories

Comparison of input acceleration at the base (red) and surface response (blue) for x, y, and z components

Note the significant amplification in the horizontal (x) direction, which is characteristic of site response. The y-direction shows minimal response (as expected since excitation is only in the x-direction), while the z-direction shows some response due to Poisson’s effect.

Transfer Function Comparison

The frequency domain comparison between numerical and analytical transfer functions provides validation of the model:

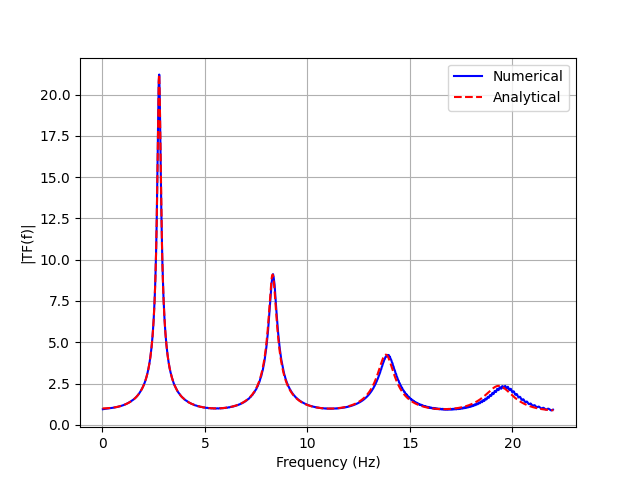

Transfer Function Comparison

Comparison of numerical (blue) and analytical (red) transfer functions

The analytical transfer function is calculated using the formula for one-dimensional wave propagation through a uniform elastic layer:

\[TF(f) = \frac{1}{\sqrt{\cos^2 \left( \frac{\omega H}{V_s} \right) + \left( R_{damp} \frac{\omega H}{V_s} \right)^2}}\]

Where:

  • \(\omega = 2\pi f\) is the angular frequency

  • \(H\) is the soil layer height

  • \(V_s\) is the shear wave velocity

  • \(R_{damp}\) is a damping coefficient based on Rayleigh damping parameters

The good agreement between numerical and analytical results validates the Femora implementation for site response analysis.

Effect of Damping Type on Transfer Function

The choice of damping model significantly affects the transfer function shape:

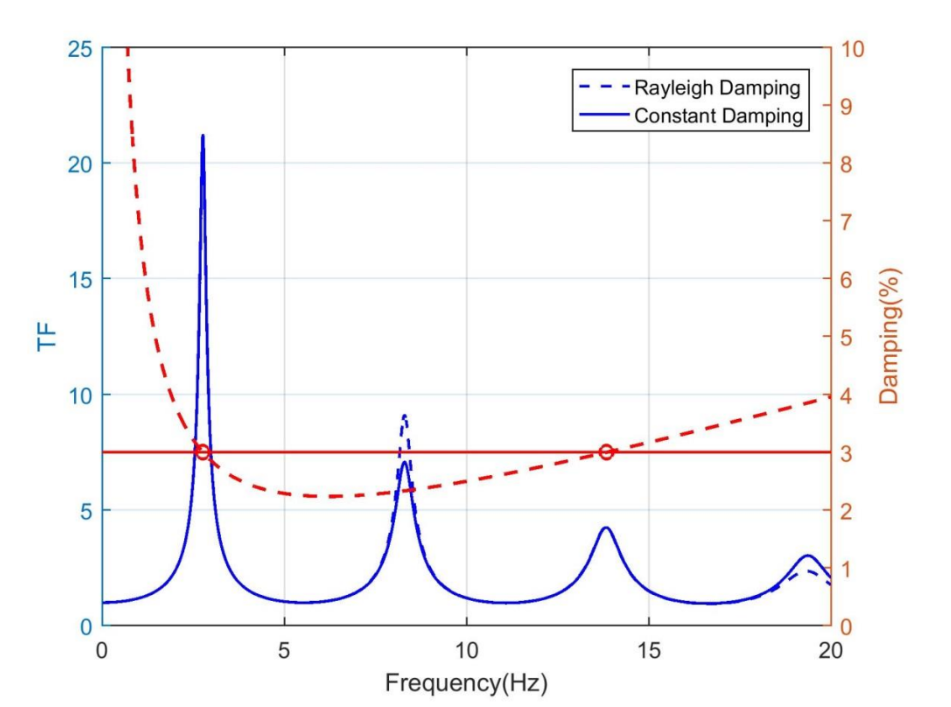

Effect of Different Damping Types

Comparison of transfer functions with constant damping versus Rayleigh damping

Rayleigh damping creates frequency-dependent damping that affects the amplification at different frequencies, while constant damping provides uniform attenuation across all frequencies. The example uses Rayleigh damping to better represent the physical behavior of soils.

Simulation Visualization

The simulation results can be visualized as an animation showing the wave propagation through the soil column:

This animation clearly demonstrates:

  1. The upward propagation of seismic waves from the base through the soil column

  2. The frequency-dependent amplification as the sweep progresses from low to high frequencies

  3. The phase difference between the base excitation and surface response

  4. The resonance behavior at certain frequencies matching the natural frequencies of the soil column

The animation was generated using the movie.py script included in the example folder, which processes the VTKHDF output files to create a time-sequence visualization showing displacement and acceleration values throughout the analysis.

Conclusion

This example demonstrates:

  1. How to create a simplified single-column model for site response analysis in Femora

  2. How to configure Femora for single-processor analysis

  3. The validation of numerical results against analytical solutions

  4. The importance of proper damping modeling in site response analysis

These concepts provide a foundation for more complex seismic analyses, including basin effects, nonlinear soil behavior, and soil-structure interaction.

Code Access

The full source code for this example is available in the Femora repository:

  • Example directory: examples/SiteResponse/Example1/

  • Python script: examples/SiteResponse/Example1/femoramodel.py

  • Data files: FrequencySweep.acc and FrequencySweep.time

  • Post-processing script: examples/SiteResponse/Example1/plot.py

  • Animation script: examples/SiteResponse/Example1/movie.py (for creating the simulation movie)

Here’s a snippet of the Python code used to create the model:

Example 1 - Single-Column Site Response Analysis
import os
import femora as fm
os.chdir(os.path.dirname(__file__))

# Create a new model
G = 62.e6                        # Shear modulus in Pa
gamma = 15.3                     # Unit weight in kN/m^3
rho = gamma * 1000 / 9.81        # Density in kg/m^3
Vs = (G / rho) ** 0.5            # Shear wave velocity in m/s
nu = 0.3                         # Assumed value for Poisson's ratio
E = 2 * G * (1 + nu)             # Young's modulus in Pa
E = E / 1000.                    # Convert to kPa
rho = rho / 1000.                # Convert to kg/m^3

# defining the materials
fm.material.create_material(material_category="nDMaterial", material_type="ElasticIsotropic", user_name="Dense Ottawa",  E=E, nu=nu, rho=rho)
fm.material.create_material(material_category="nDMaterial", material_type="ElasticIsotropic", user_name="Loose Ottawa",  E=E, nu=nu, rho=rho)
fm.material.create_material(material_category="nDMaterial", material_type="ElasticIsotropic", user_name="Dense Montrey", E=E, nu=nu, rho=rho)

DensOttawaEle  = fm.element.create_element(element_type="stdBrick", ndof=3, material="Dense Ottawa",  b1=0.0, b2=0.0, b3=-9.81 * rho)
LooseOttawaEle = fm.element.create_element(element_type="stdBrick", ndof=3, material="Loose Ottawa",  b1=0.0, b2=0.0, b3=-9.81 * rho)
MontreyEle     = fm.element.create_element(element_type="stdBrick", ndof=3, material="Dense Montrey", b1=0.0, b2=0.0, b3=-9.81 * rho)


# create one damping for all the meshParts
uniformDamp = fm.damping.frequencyRayleigh(f1 = 2.76, f2 = 13.84, dampingFactor=0.03)
region = fm.region.elementRegion(damping=uniformDamp)



# defining the mesh parts
Xmin = 0.0 ;Xmax = 1.0
Ymin = 0.0 ;Ymax = 1.0
Zmin = -18.;Zmax = 0.0
dx   = 1.0; dy   = 1.0
Nx = int((Xmax - Xmin)/dx)
Ny = int((Ymax - Ymin)/dy)

# layers info from bottom to top
layers = [
    {"name": "DensOttawa1", "element": DensOttawaEle,  "thickness": 2.6, "dz": 1.3},
    {"name": "DensOttawa2", "element": DensOttawaEle,  "thickness": 2.4, "dz": 1.2},
    {"name": "DensOttawa3", "element": DensOttawaEle,  "thickness": 5.0, "dz": 1.0},
    {"name": "LooseOttawa", "element": LooseOttawaEle, "thickness": 6.0, "dz": 0.5},
    {"name": "Montrey",     "element": MontreyEle,     "thickness": 2.0, "dz": 0.5},
]

for layer in layers:
    fm.meshPart.create_mesh_part(
        category="Volume mesh",
        mesh_part_type="Uniform Rectangular Grid",
        user_name=layer["name"],
        element=layer["element"],
        region=region,
        **{
            'X Min': Xmin, 'X Max': Xmax,
            'Y Min': Ymin, 'Y Max': Ymax,
            'Z Min': Zmin, 'Z Max': Zmin + layer["thickness"],
            'Nx Cells': Nx, 'Ny Cells': Ny, 'Nz Cells': int(layer["thickness"] / layer["dz"])
        }
    )
    Zmin += layer["thickness"]



#  Create assembly Sections
fm.assembler.create_section(meshparts=["DensOttawa1", "DensOttawa2", "DensOttawa3"], num_partitions=0)
fm.assembler.create_section(["LooseOttawa"], num_partitions=0)
fm.assembler.create_section(["Montrey"], num_partitions=0)

# Assemble the mesh parts
fm.assembler.Assemble()

# Create a TimeSeries for the uniform excitation
timeseries = fm.timeSeries.create_time_series(series_type="path",
                                              filePath="FrequencySweep.acc",
                                              fileTime="FrequencySweep.time",
                                              factor= 9.81)

# Create a pattern for the uniform excitation
kobe = fm.pattern.create_pattern(pattern_type="uniformexcitation",dof=1, time_series=timeseries)


# boundary conditions
fm.constraint.mp.create_laminar_boundary(bounds=(-17.9,0),dofs=[1,2,3], direction=3)
fm.constraint.sp.fixMacroZmin(dofs=[1,1,1],tol=1e-3)


# Create a recorder for the whole model
mkdir = fm.actions.tcl("file mkdir Results")
recorder = fm.recorder.create_recorder("vtkhdf", file_base_name="Results/result.vtkhdf",resp_types=["accel", "disp"], delta_t=0.001)

# gravity analysis
newmark_gamma = 0.6
newnark_beta = (newmark_gamma + 0.5)**2 / 4
dampNewmark = fm.analysis.integrator.newmark(gamma=newmark_gamma, beta=newnark_beta)
gravity = fm.analysis.create_default_transient_analysis(username="gravity",
                                                        dt=1.0, num_steps=30,
                                                        options={"integrator": dampNewmark})

# dynamic analysis
system = fm.analysis.system.bandGeneral()
numberer = fm.analysis.numberer.rcm()
dynamic = fm.analysis.create_default_transient_analysis(username="dynamic",
                                                        final_time=40.0, dt=0.001,
                                                        options={"system": system,
                                                                 "numberer": numberer})


reset = fm.actions.seTime(pseudo_time=0.0)

# Add the recorder and gravity analysis step to the process
fm.process.add_step(gravity,  description="Gravity Analysis Step")
fm.process.add_step(kobe,     description="Uniform Excitation (Kobe record)")
fm.process.add_step(mkdir,    description="Create Results Directory")
fm.process.add_step(recorder, description="Recorder of the whole model")
fm.process.add_step(reset,    description="Reset pseudo time")
fm.process.add_step(dynamic,  description="Dynamic Analysis Step")
fm.export_to_tcl("mesh.tcl")


# fm.gui()
